NC-UV9060-MAX Mini Flatbed UV Printer with Visual Positioning
| Previous | 1 / 5 | Next |
Specification
| Print Head |
Original Epson i3200-U1HD (Color) Original Epson i3200-U1 (White) Original Epson i1600-U1 (Vanish)(Primer) |
| Resolution | Max 2400dpi |
| Color | CMYKLcLmLkLlk+White+Vanish+Primer |
| Ink | UV Curable |
| Printing Area | 900mm X 600mm (CMYK+W) | 900mm X 570mm (CMYK+W+V) |
| Material Tickness | 0~180mm |
| RIP Software | FlexiPRINT |
| Interface | Ethernet |
| Curing System | LED UV System |
| Operation System | Windows 10 / 11 |
| Voltage & Power | 220~240, 50/60HZ 470W |
| Temperature | 20C ~ 35C |
| Humidity | 35%กซ65% |
| Dimension | 1998mm(W) x 1298mm(L) x 787mm(H) |
| Weight | 250KG |
.jpg)

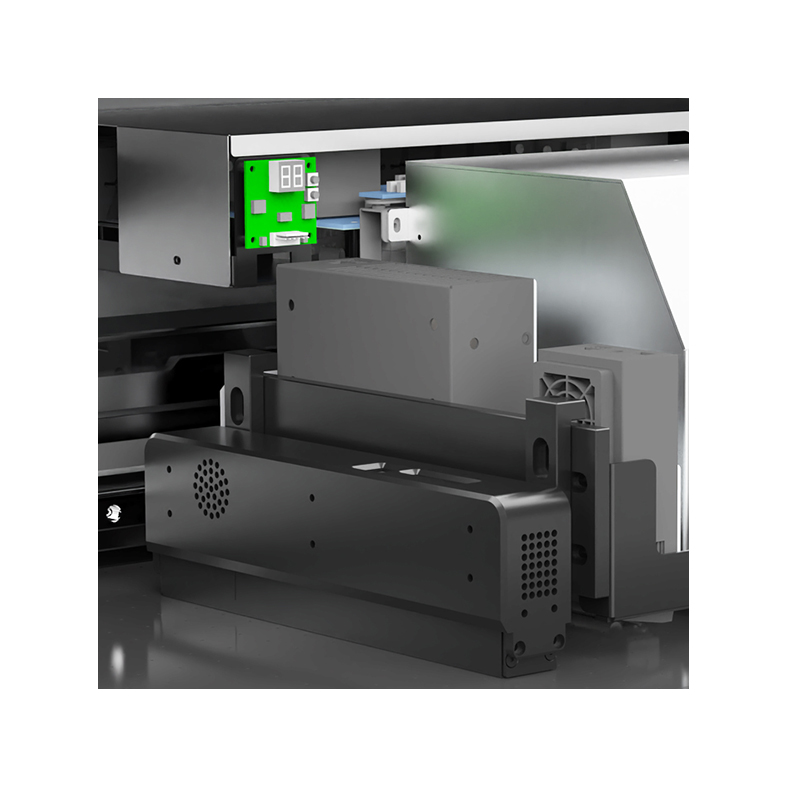

Visual Positioning Device
| Identification method | Cart identification |
| Camera scanning range | 900mm x 600mm |
| Print positioning accuracy | ±0.1mm |
| Camera recognition height | 0 ~ 8mm |
| Full scan time | ±90 second |
